ViewSonic TD2421 23.6-inch LED Backlit Computer Monitor with VGA, Internal Speaker and 2 USB Ports

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic^® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. What’s more, ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.

DUAL-POINT OPTICAL TOUCH

Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.

SUPERCLEAR ® MVA PANEL TECHNOLOGY

Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

FULL HD 1080P RESOLUTION

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.

MULTI-TOUCH FOR MACOS



With the all new vTouch^TM* driver, macOS users can now access a full range of touch and gesture controls on ViewSonic^® TD external touch displays connected to their Apple products.

*vTouch 1.0 is compatible with systems using Intel chips and the Catalina OS. Touch application for Apple Silicon (M1 chip) and the Big Sur OS is currently under development.



VERSATILE CONNECTIVITY

HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.

ENHANCED VIEWING COMFORT

An anti-glare, anti-reflective surface enhances viewing comfort and helps to reduce eye strain.

3-YEAR LIMITED WARRANTY

Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.





DISPLAY SIZE (IN.)

24

RESOLUTION

1920 x 1080

STATIC CONTRAST RATIO

3,000:1

RESPONSE TIME (TYPICAL GTG)

5ms

DISPLAY

DISPLAY SIZE (IN.)

24

VIEWABLE AREA (IN.)

23.6

RESOLUTION

1920 x 1080

STATIC CONTRAST RATIO

3,000:1

DYNAMIC CONTRAST RATIO

50,000,000:1

BRIGHTNESS

250 cd/m2

BACKLIGHT LIFE (HOURS)

40,000

RESPONSE TIME (TYPICAL GTG)

5ms

PANEL TYPE

MVA

COLORS

16.7M

VIEWING ANGLES

178º horizontal, 178º vertical

LIGHT SOURCE

LED

PANEL SURFACE

6H Scratch Resistant Surface Hardness

ASPECT RATIO

16:9

COMPATIBILITY

PC RESOLUTION (MAX)

1920 x 1080

TOUCH

TOUCH TECHNOLOGY

Optical

TOUCH POINTS

2-Point Touch

CONNECTOR

USB TYPE A

2

USB TYPE B

1

VGA

1

HDMI 1.4 IN

1

DVI-I

1

AUDIO

INTERNAL SPEAKERS

2W (x2)

VIDEO SIGNAL

FREQUENCY HORIZONTAL

Analog and Digital: 24 ~ 82KHz

FREQUENCY VERTICAL

Analog: 50 ~ 75Hz, Digital: 50 ~ 75Hz

VIDEO INPUT

ANALOG SYNC

Analog: Separate Sync / Composite Sync / Sync on Green, Digital: TMDS

POWER

CONSUMPTION (TYPICAL)

16.5W

CONSUMPTION (MAX)

28W

VOLTAGE

AC 100-240V (universal), 50-60Hz

STAND-BY

0.5W

CONTROLS

PHYSICAL CONTROLS

GameMode, 1, 2, 3, 4, Power

ON SCREEN DISPLAY

Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

OPERATING CONDITIONS

TEMPERATURE

32-104º F (0 - 40º C)

HUMIDITY (NON-CONDENSING)

20-90%

ERGONOMICS

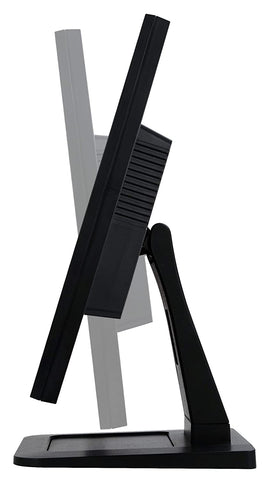

TILT (FORWARD/BACK)

6º / 22º

ADDITIONAL HARDWARE

KENSINGTON LOCK SLOT

1

MOUNT

VESA COMPATIBLE

100 x 100 mm

WEIGHT (METRIC)

GROSS (KG)

7.3

NET (KG)

5.2

NET WITHOUT STAND (KG)

4.3

WEIGHT (IMPERIAL)

NET (LBS)

11.4

NET WITHOUT STAND (LBS)

9.5

GROSS (LBS)

16

DIMENSIONS (METRIC) (WXHXD)

PACKAGING (MM)

640 x 460 x 200

PHYSICAL (MM)

571 x 392 x 240

PHYSICAL WITHOUT STAND (MM)

571 x 340 x 58

DIMENSIONS (IMPERIAL) (WXHXD)

PACKAGING (IN.)

25.2 x 18.1 x 7.9

PHYSICAL (IN.)

22.5 x 15.4 x 9.5

PHYSICAL WITHOUT STAND (IN.)

22.5 x 13.4 x 2.3

GENERAL

REGULATIONS

cULus, FCC, ICES003, Energy Star, EPEAT, UL-MX-CoC, Mexico Energy, CE, CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, EAC

PACKAGE CONTENTS

LCD Display, Power Cable, VGA Cable, DVI Cable, USB2.0 Upstream Cable, Audio Cable, Quick Start Guide, ViewSonic Wizard CD-ROM

WARRANTY

Three-year limited warranty on parts, labor and backlight

RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.

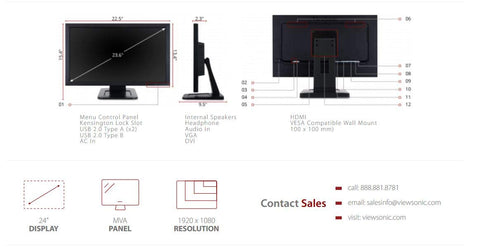

DIMENSIONS

22.5 x 15.4 x 9.5 in / 571 x 392 x 240 mm

1. Menu Control Panel
2. Kensington Lock Slot
3. USB 2.0 Type A (x2)
4. USB 2.0 Type B
5. AC In
6. Internal Speakers
7. Headphone
8. Audio In
9. VGA
10. DVI
11. HDMI
12. VESA Compatible Wall Mount 100 x 100 mm)
