ViewSonic TD1630-3 16" 10-point Touch Screen Monitor
TD1630-3
16" 10-point Touch Screen Monitor
- Advanced ergonomic stand for tilt or flat
- HDMI and VGA inputs
- Supports Windows® 7/8/10 and selected Linux
- 7H hardness screen
- Dual integrated speakers
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.10-point Multi-touch
Advanced ergonomic stand design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.Ergonomic stand
Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.HDMI, VGA
Cross-platform compatibility
Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.*Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.7H Hardness

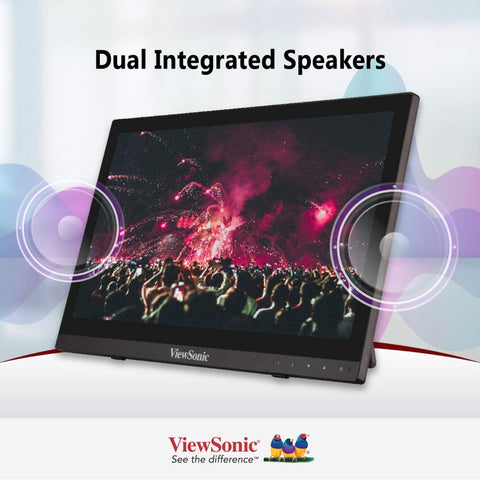

Dual integrated speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.Dual integrated speakers
Enhanced Viewing Comfort
Blue Light Filter help to eliminate eye strain from extended viewing periods.Blue light filter
.jpg)
VESA-compatible mount
Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.75mm x 75mm
- Internal Speakers
- USB
- DC In
- VESA Compatible(Wall Mount 75x75mm)
- VGA
- HDMI
SPECIFICATIONS
-
DISPLAY
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA
Static Contrast Ratio: 500:1 (typ)
Dynamic Contrast Ratio: 10M:1
Light Source: LED
Colours: 262K
Colour Space Support: 6 bit true
Brightness: 160 cd/m²
Aspect Ratio: 16:9
Response Time (Typical GTG): 12ms
Viewing Angles: 90º horizontal, 60º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Colour Gamut: NTSC: 45% size (Typ)
Pixel Size: 0.252 mm (H) x 0.252 mm (V)
Touch Screen: Projected capacitive, 10-point multi touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 0.83 mm
-
INPUT SIGNAL
Frequency: Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz
Sync: Separate Sync, TMDS
-
COMPATIBILITY
PC: Windows 7/8/10 tested
Mac®: Display: Power Mac tested, Touch Module:iOS not support
-
CONNECTOR
Input: DB -15 x 1
HDMI x 1 (v1.4 compatible)
Audio in x1 (3.5mm plug)
-
AUDIO
Speaker: 1W x 2
-
USB
Upstream: Type B x 1
-
POWER
Power: 5.5 x 2.1 x 11 mm DC connector
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 5.5W
Optimize: 4.9W
Conserve: 4.3W
-
ERGONOMICS
Tilt: 15 ~ 50 degrees
-
SPECIAL FEATURES
Eye Care: Blue light filter
-
WALL MOUNT
VESA®: 75mm x 75mm
-
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 85% (no condensation)
-
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree)
Physical without stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D)
Packaging (mm): 453mm (W) x 389mm (H) x 86mm (D)
-
WEIGHT
Net with stand: 1.32kg (2.91lbs)
Net without stand: 1.32kg (2.91lbs)
Gross: 2.5kg (5.51lbs)
-
REGULATIONS
VSI: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
-
WARRANTY
*Warranty offered may differ from market to market
-
PACKAGE CONTENTS
LCD Display
40W AC/DC Adapter (1.2m)
Power Cable (1.5m)
VGA Cable (1.5m)
USB2.0 Cable (1.8m)
Audio Cable (1.8m)
Quick Start Guide
LCD Display
40W AC/DC Adapter (1.2m)
Power Cable (1.5m)
VGA Cable (1.5m)
USB2.0 Cable (1.8m)
Audio Cable (1.8m)
Quick Start Guide
